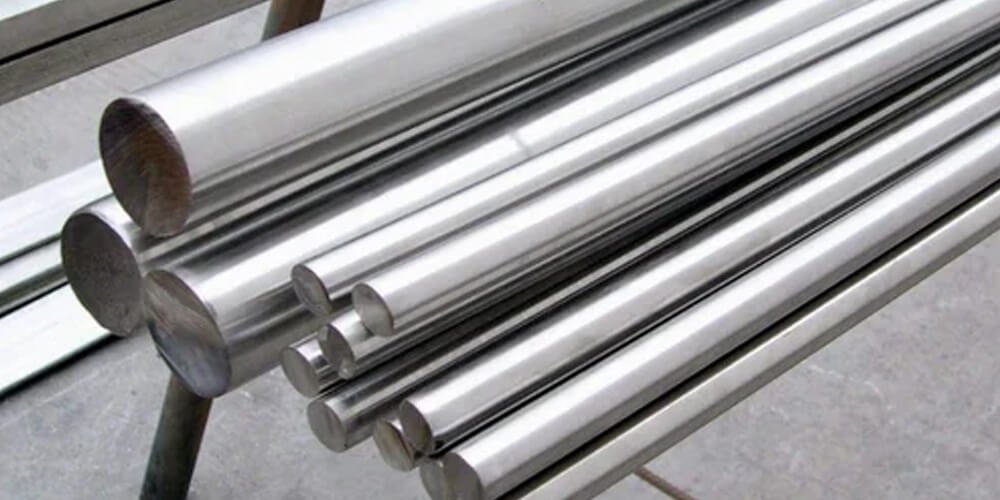

Best EN1A Carbon Steel Manufacturers & Suppliers in Mumbai – High Quality Carbon Steel Round Supply
Looking for trusted EN1A Carbon Steel Round Bar Manufacturers & Suppliers in Mumbai ? We Titan Steel, Mumbai provide durable, precision-engineered carbon steel round bars for construction, industrial, and engineering needs. Get reliable quality, competitive prices, and timely delivery from leading suppliers in Mumbai.

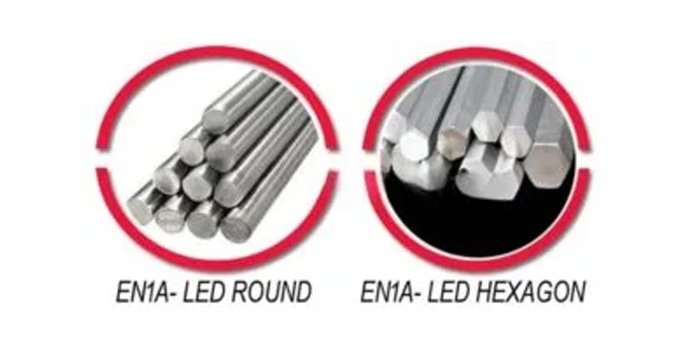

EN1A Leaded and Non-Leaded Grade Introduction:
EN1A is a popular low-carbon manganese free-cutting steel grade, ideal for manufacturing components that require precision and intricate machining operations. It is commonly used for high-production automatic turning components like nuts, bolts, studs, and hydraulic fittings. EN1A is available in two variants: leaded (EN1A Pb) and non-leaded. The leaded version improves machinability, producing small chips during machining, which helps prevent machine blockages. EN1A can also be case-hardened for applications requiring increased surface wear resistance.
EN1A Leaded and Non-Leaded Grade Applications:
EN1A steel is well-suited for applications prioritizing excellent machinability. It is primarily used for automatic lathes and capstan lathes for producing finely finished components. However, EN1A is not suitable for parts subjected to high stresses. It is also not ideal for hollow components exposed to internal pressures, which may stress the transverse yield strength. Case hardening can enhance the wear resistance of components but is not recommended for applications involving severe impact.
Typical applications include:
- Brake hose ends
- Hydraulic parts
- Pulleys
- Disc brake pistons
- Wheel nuts and inserts
- Control linkages
- Gearbox components (case hardened)
- Garbage bin axles
- Concrete anchors
- Padlock shackles
- Vice jaws
- Hydraulic fittings
EN1A is commonly used in bright form.
EN1A Leaded and Non-Leaded Equivalent Grades:
- BS970: 1955: EN1A
- BS970/PD970: 1970 onwards: 230M07
- European grades: 9SMn28, BS En 11SMn30
- Werkstoff No.: 1.0715
- US Grades SAE (AISI): 1213, 1215
EN1A Leaded and Non-Leaded Chemical Composition:
| Element | Content (%) |
|---|---|
| Carbon (C) | 0.07-0.15 |
| Silicon (Si) | 0.10 Max |
| Manganese (Mn) | 0.80-1.20 |
| Phosphorus (P) | 0.07 Max |
| Sulfur (S) | 0.2-0.3 |
EN1A Leaded and Non-Leaded Mechanical Properties:
| Property | Metric | Imperial |
|---|---|---|
| Hardness, Brinell (typical) | 300 | 33 |
| Hardness, Rockwell C (typical) | 30 | 30 |
| Tensile strength, ultimate | 965-1030 MPa | 140000-150000 psi |
| Tensile strength, yield | 827-862 MPa | 120000-125000 psi |
| Elongation at break (in 50 mm) | 20.0% | 20.0% |
| Compressive strength | 862 MPa | 125000 psi |
| Charpy impact (V-Notch) | 27.1-33.9 J | 20.0-25.0 ft-lb |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elastic modulus | 190-210 GPa | 27557-30457 ksi |
Finish Properties:
| Finish | Yield N/mm² | Tensile N/mm² | Elongation Min | Hardness HB |
|---|---|---|---|---|
| Turned | 230/310 | 370/500 | 17 | 100/150 |
| Drawn | 290/550 | 400/650 | 7 | 115/200 |
EN1A Leaded and Non-Leaded Hardness:
- Brinell Hardness: 300
EN1A Leaded and Non-Leaded Heat Treatment:
Carbonization of EN1A bright mild steel takes place at 900-950°C, followed by air or furnace cooling. Tempering can be done at 180-210°C, and the steel is then left to cool in the air. EN1A can also be hardened at 780-800°C, followed by quenching in oil or water, but this process is not recommended due to the material’s properties.
EN1A Leaded and Non-Leaded Hardening:
Hardening is not typically recommended for EN1A due to its lead and sulfur content.
EN1A Leaded and Non-Leaded Tempering:
EN1A can be tempered at 180-210°C and cooled in air.
EN1A Leaded and Non-Leaded Physical Properties:
EN1A is known for its high machinability and is available in leaded and non-leaded forms.
EN1A Leaded and Non-Leaded Welding:
Welding is not recommended for EN1A due to its high sulfur and lead content, which could cause issues with weld quality.
