Best DIN 1.2714 Die Steel & Tool Steel Manufacturers in Mumbai – Premium Quality Suppliers

Looking for reliable Best DIN 1.2714 Die Steel & Tool Steel Manufacturers in Mumbai? We Titan Steel offer high-grade, durable, and wear-resistant steels for moulds, dies, cutting tools, and industrial applications. Get precision, strength, and timely delivery from trusted suppliers in Mumbai.

DIN 1.2714 Grade Overview:

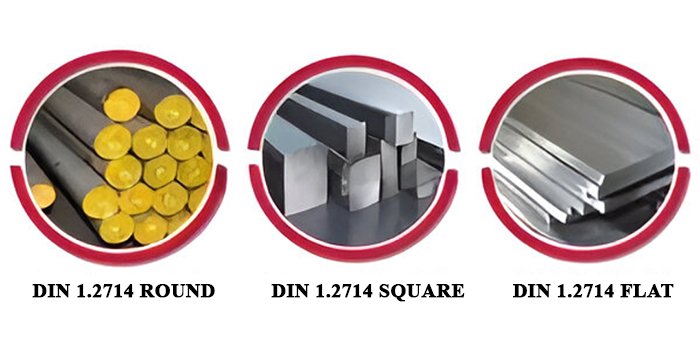

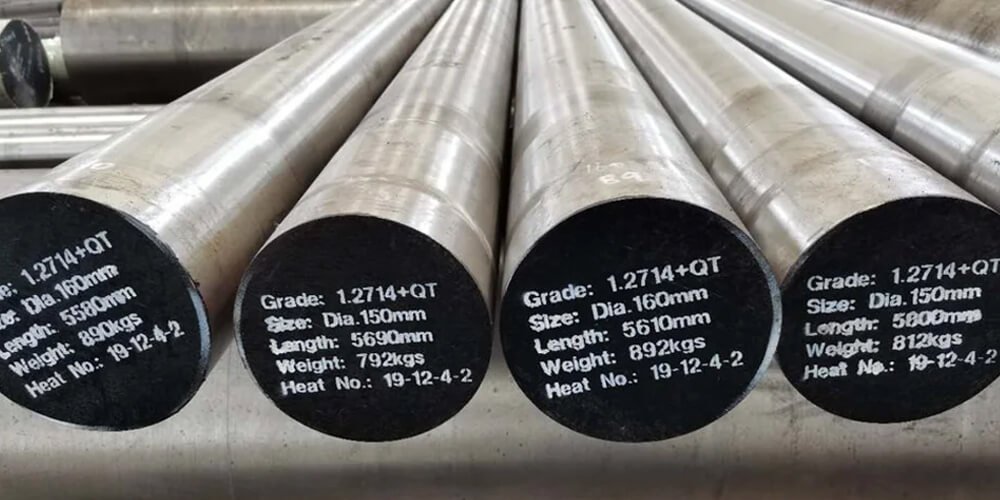

DIN 1.2714 is a German alloy steel grade specifically designed for hot work applications. Known for its shock-resisting properties, it falls under the DIN 17350 standard and is identified by the material number W-Nr 1.2714. This steel, also known as 56NiCrMoV7, is commonly used in the production of extrusion molds, hot cast molds, and aluminum cast molds. DIN 1.2714 is available in both hot-rolled small sizes and forged large sizes, ensuring quality and performance for various industrial needs.

Applications of DIN 1.2714 – BRIGHT BAR:

  • Spindles
  • Forming Rolls
  • Punches
  • Blanking and Forming Dies
  • Trimmer Dies
  • Clutch Parts
  • Pawls
  • Bearings
  • Chucks Parts
  • Rollers
  • Knuckle Pins
  • Clutch Pins
  • Shear Blades

Equivalent Grades for DIN 1.2714 – BRIGHT BAR:

  • USA: L6
  • Germany: 55NiCrMoV6, 56NiCrMoV7
  • China: 5CrNiMo
  • Japan: SKT4
  • France: 55NCDV7
  • England: BH224-5
  • Italy: 44NiCrMoV7-KU
  • Poland: WNL
  • Czechia: 19662
  • Austria: W501
  • Russia: 5KHNM
  • Inter: 55NiCrMoV7

Additional Grades:

MS, EN1A, EN3B, EN8, EN8D, EN9, EN24, EN31, EN32B, EN36C, EN41B, EN43B, EN47, EN353, IS2062, 42Crmo4, HCHCR, D2, D3, H-11, H-13, CW-1, OHNS M2, M35, M42, DIN-1.2714, P20, P20+S, P20+Ni, SCM420, ASTM SA-36, ASTM SA-105, SAE1018, SAE1010, SAE4140, SAE8620, 16MNCR5, 20MNCR5, C20, C45, C50, C60, CK45, 20C8, 40C8, 45C8, 55C8, C55MN75, SAE52100, S40C, S355J2G3.

DIN 1.2714 – BRIGHT BAR Chemical Composition:

  • Carbon (C): 0.50 – 0.60%
  • Silicon (Si): 0.10 – 0.40%
  • Manganese (Mn): 0.60 – 0.90%
  • Nickel (Ni): 1.50 – 1.80%
  • Phosphorus (P): ≤ 0.03%
  • Sulfur (S): ≤ 0.03%
  • Chromium (Cr): 0.80 – 1.20%
  • Molybdenum (Mo): 0.35 – 0.55%
  • Vanadium (V): 0.05 – 0.15%

DIN 1.2714 – BRIGHT BAR Mechanical Properties:

  • Hardness (HB): 376
  • Rp 0.2 Yield Strength: 1045 MPa (ksi 151)
  • Rm Tensile Strength: 1270 MPa (ksi 184)
  • Elongation: 10%
  • Impact Toughness (KCV at 20°C): 40 J
  • Elastic Modulus: 205 GPa (29.7 ksi)

DIN 1.2714 – BRIGHT BAR Hardness:

  • Annealing: Max 255 HB
  • Quenching and Tempering (Q+T): 58-38 HRc, with varying hardness based on tempering temperature.

DIN 1.2714 – BRIGHT BAR Heat Treatment:

Hardening Temperature: 840 – 870°C, quenched in oil

Tempering: Commonly at 400 – 650°C. Tempering values at different temperatures:

  • 400°C: 1770 MPa
  • 500°C: 1570 MPa
  • 600°C: 1320 MPa
  • 650°C: 1180 MPa

DIN 1.2714 – BRIGHT BAR Physical Properties:

  • Density: 7.85 kg/m³
  • Thermal Conductivity:
    • 20°C: 35.0 W/(m*K)
    • 350°C: 39.0 W/(m*K)
    • 700°C: 36.0 W/(m*K)
  • Forging Ratio: Minimum 4:1
  • Microstructure: Information available upon request
  • Magnetic Properties: Specifics available upon inquiry

DIN 1.2714 – BRIGHT BAR Forging Properties:

  • Forging Temperature: Pre-heat slowly; hot-working temperature: 1050 – 850°C

DIN 1.2714 – BRIGHT BAR Stress Relieving:

  • Process: Heat to 600-650°C, soak for about two hours per 25mm of section, cool in furnace to 500°C, then air cool. Recommended after rough machining before hardening

DIN 1.2714 – BRIGHT BAR Normalizing:

  • Note: Due to its air-hardening characteristics, normalizing is not recommended.

DIN 1.2714 – BRIGHT BAR Annealing:

  • Annealing Temperature: 680 – 710°C; after annealing, hardness ≤ 250 HB

DIN 1.2714 – BRIGHT BAR Machinability:

  • Rating: Excellent machinability, rated at 90% compared to the baseline of W-group water-hardening low alloy steels.

DIN 1.2714 – BRIGHT BAR Welding:

  • Welding Guidelines: Stress tempering recommended for pre-hardened conditions.

For more detailed technical specifications, heat treatment guidelines, and pricing information, please contact our sales team.

CW-1 Physical Properties:

Property Value Unit
Thermal Expansion 16-17 e-6/K
Thermal Conductivity 16 W/m·K
Specific Heat 500 J/kg·K
Melting Temperature 1370-1400 °C
Service Temperature 0-500 °C
Density 8000 kg/m³
Resistivity 0.7 Ohm·mm²/m

CW-1 Thermal Properties:

Property Value Unit Conditions
Thermal Conductivity 42.7 W/m·K 100°C
Specific Heat 477 J/kg·K 50-100°C
